Winmeter 5.1 Battery Analysis Software
Winmeter 5.1 Battery Analysis Software enables the user to download and integrate data from the entire range of battery test instruments (including legacy products)and produce text and graphical battery analysis reports. With these reports, the user can quickly identify batteries that are likely to require preventative maintenance.
Features:
- Compatible with the entire range of ETG battery test instruments, including legacy RS232 products (DSG30, DLV30, DMA35(n) data logging modules etc)
- Imports existing Winmeter 4.1/4.2 database
- USB Plug 'n' Play with all ETG USB enabled test instruments (DLV50, etc)
- Enables threshold, date, time and string deletion via USB
- Automatically combines voltmeter and hydrometer data from companion battery test instruments to produce float battery reports
- Perform sophisticated analysis of battery discharge data (included animated discharge reports) when used in conjunction with the DLV50 data logging volmeter
- Users can edit, delete or insert test data prior to creating battery analysis reports and saving data files
- Optional one-click export data to Excel™
- Provides the user the ability to setup reports according to their specific requirements
- Flexible report prototyping facility enables users to view their reports online before printing
- Standard graphical reports that enable quick identification of batteries that might require preventative maintenance
Selected Screenshots:

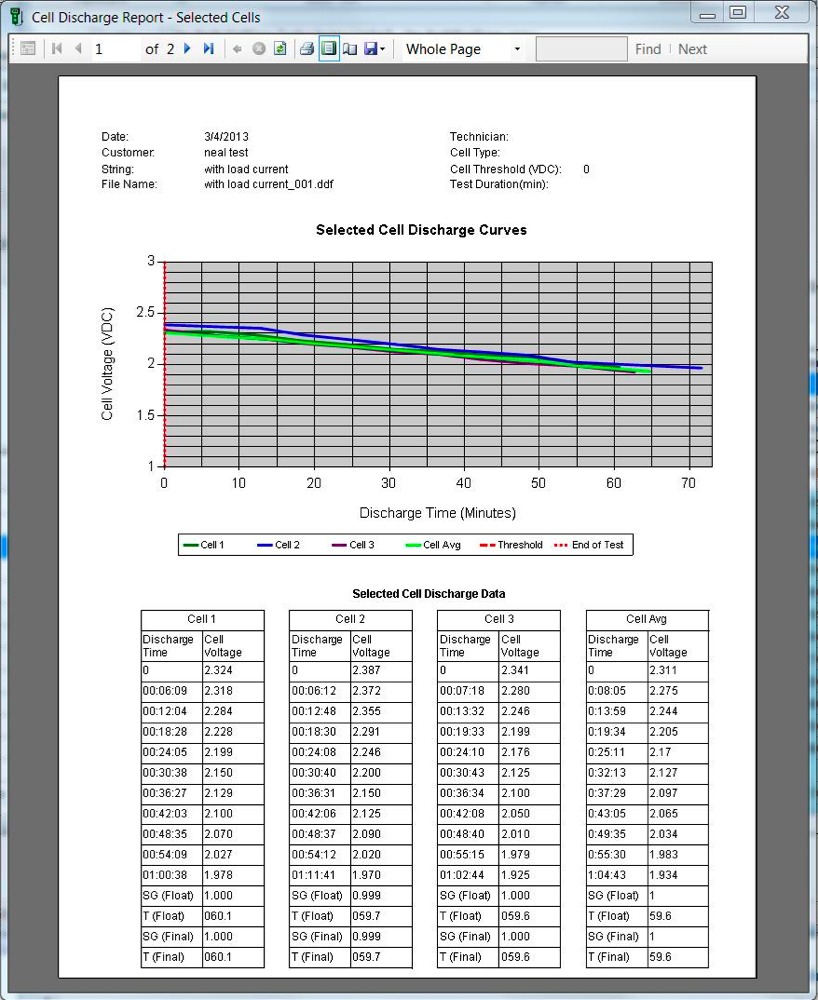

Cell Discharge Report - Selected Cells

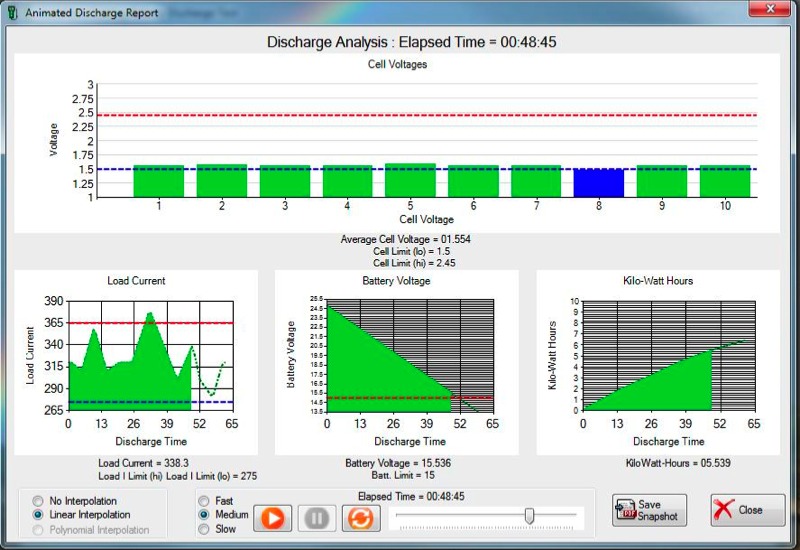

Create an animated report from the discharge test data and print/save a snapshot in time

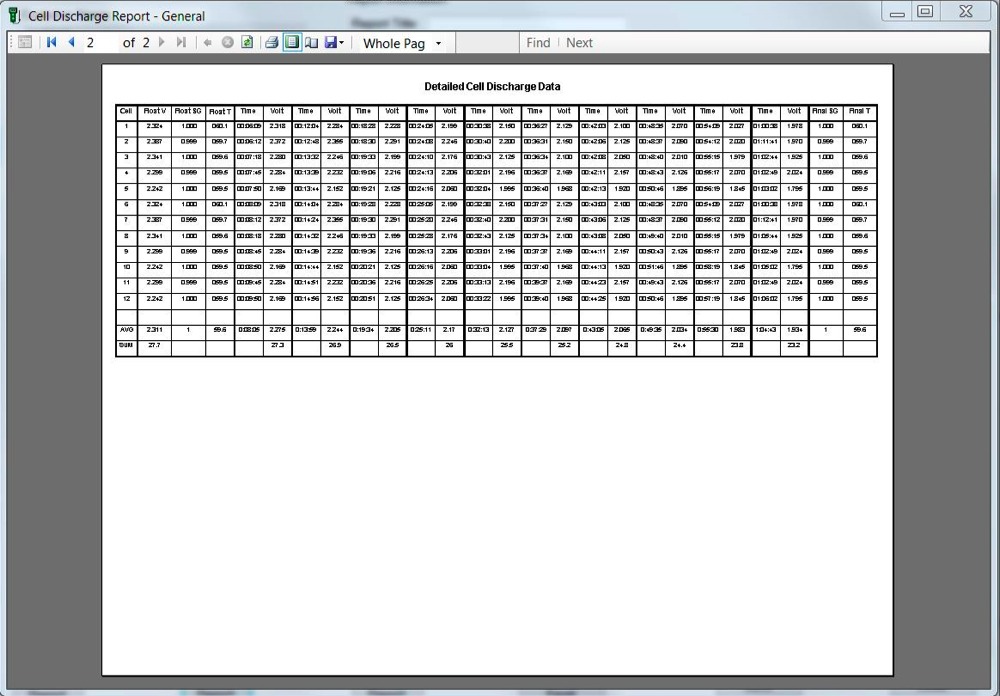

Cell discharge report - general

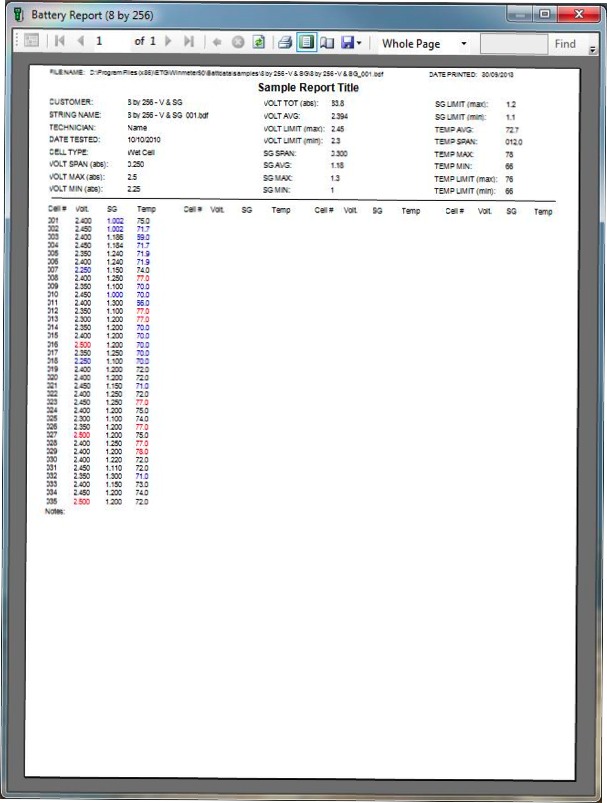

Tabular battery reports - float mode

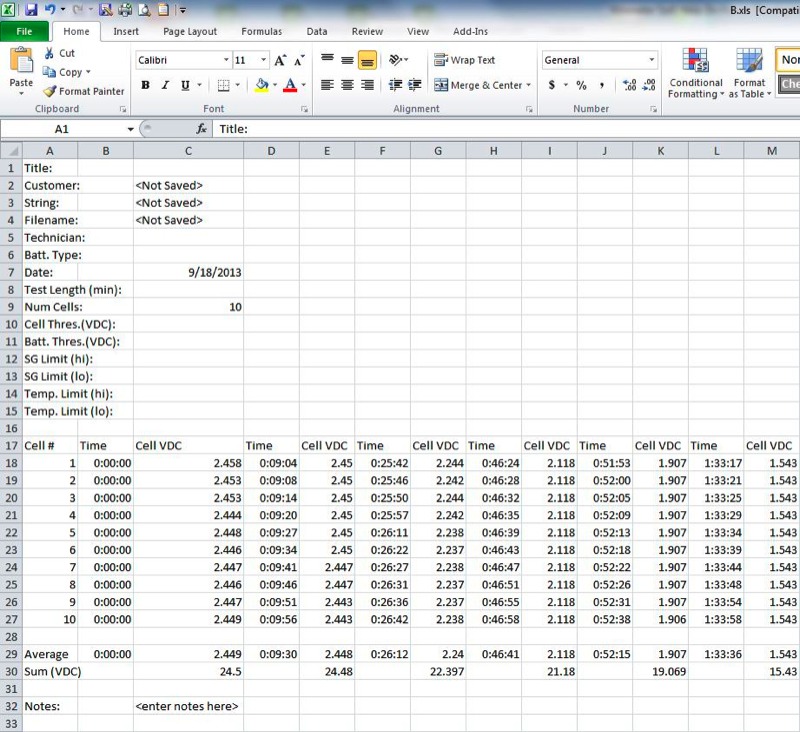

One-click export to Excel

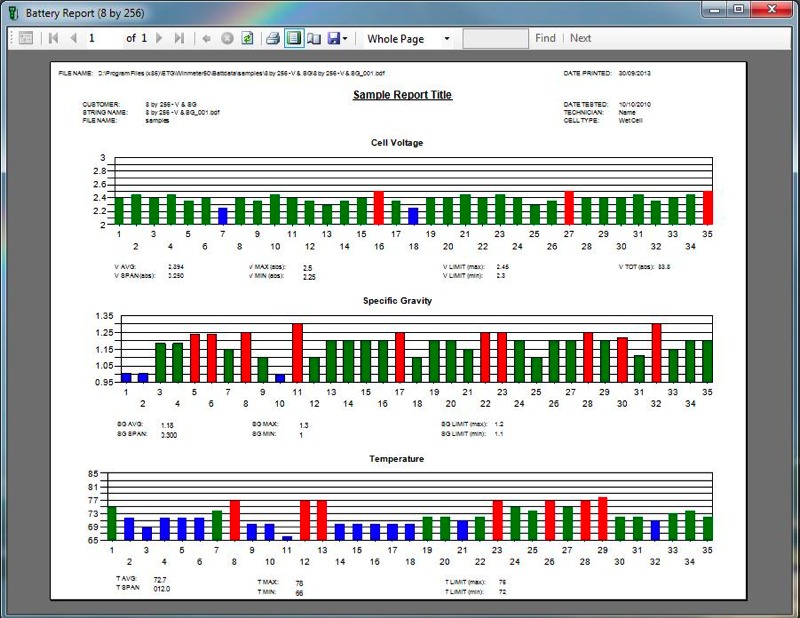

Graphical battery reports - float mode

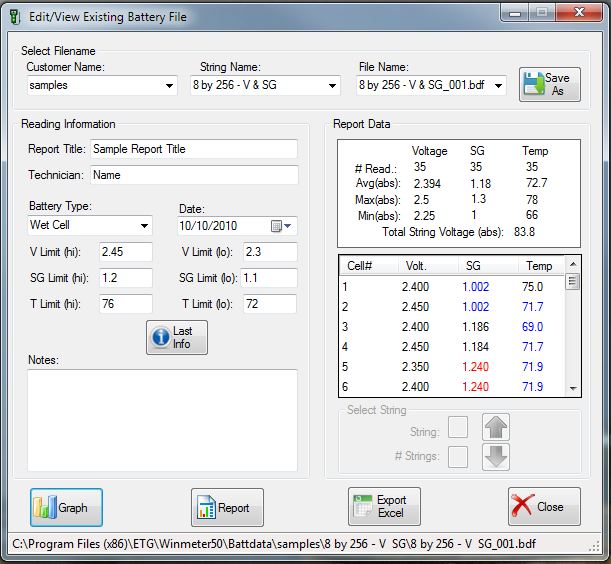

Create or edit battery test files and save to a custom database

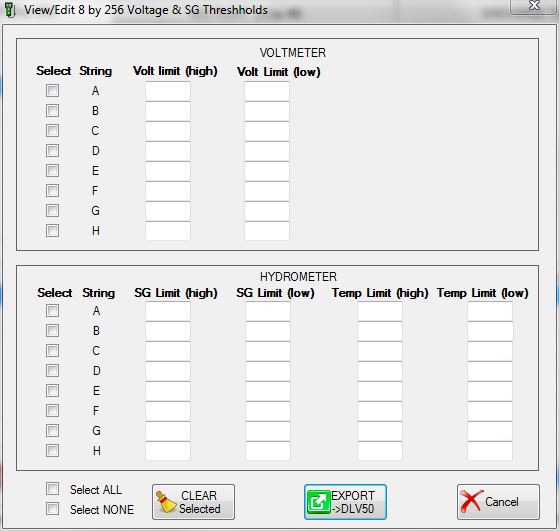

Edit all test DLV50 test thresholds in seconds

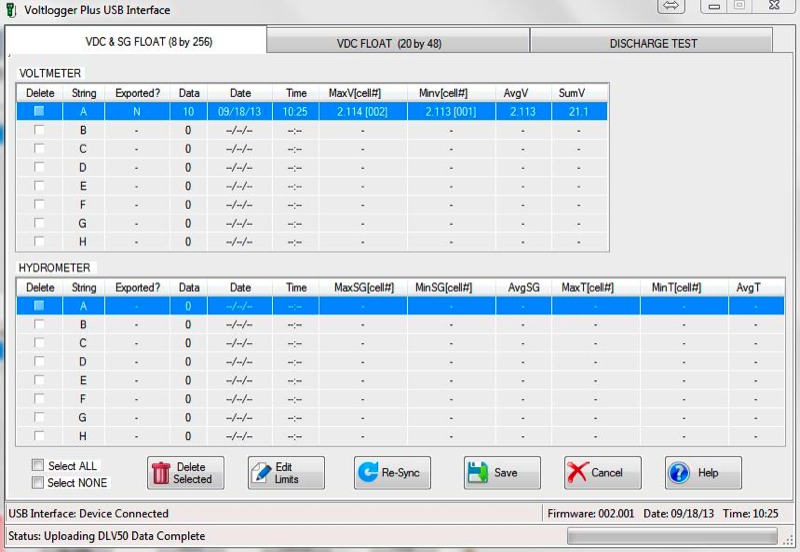

Download DLV50 data, erase strings and/or set limits in seconds via high speed USB interface
