Explorer Technology Group
Automating The Battery Test Industry

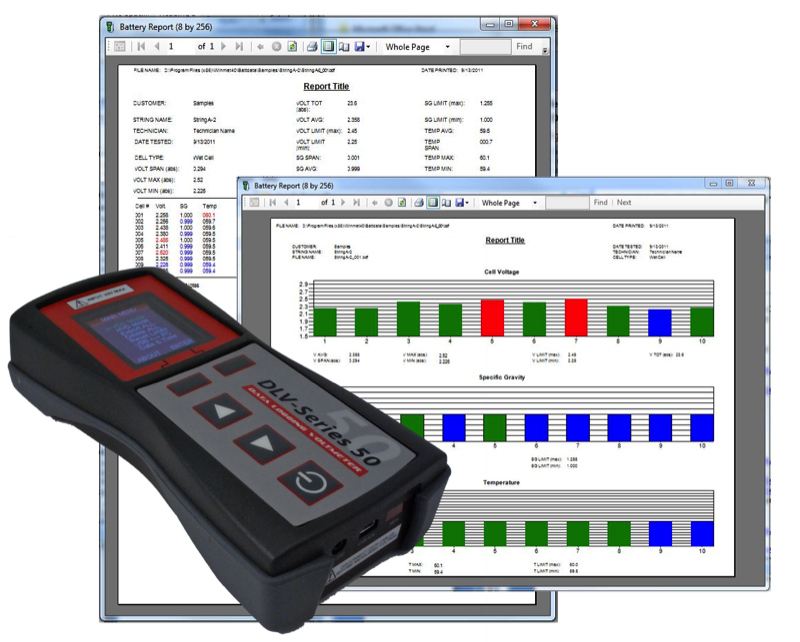

DLV50 Data Logging Voltmeter Plus
Features:

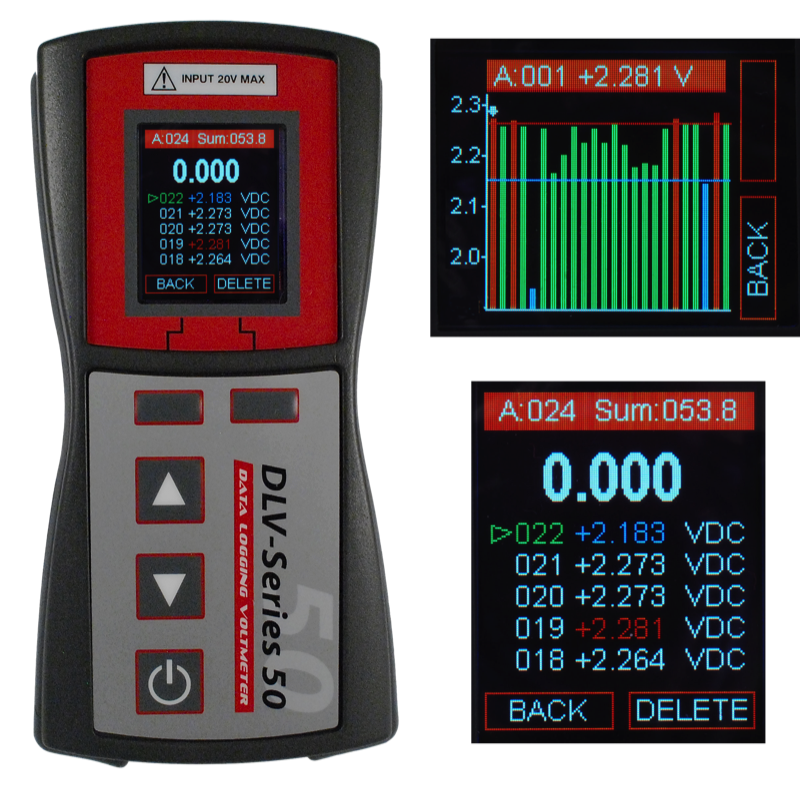

Record, View & Analyze Cell Float Voltages
- Automatically measure, time-stamp, store voltages in less than 1 second
- Immediate audio and visual out-of-tolerance indication
- View/edit last 5 readings with out-of-tolerance indication
- Record in either 8 strings of 256 or 20 strings of 48 format
- Color-coded out of tolerance indication
- Set threshold limits via PC interface for each mode and/or string
- Statistical analysis (sum, average, max/min readings with cell number)
- Graphical analysis (color-coded bar graphs: Voltage, SG and Temp.)
Perform a Full Battery Discharge Test & Analyze Results Onsite During the Test
- Test up to 256 cells with up to 11 time-stamped data points for each cell
- Record time-stamped readings of load current via a shunt/current probe
- Record initial and/or final hydrometer readings via a DMA35 hydrometer
- Color-coded out of tolerance indication
- Threshold limits set via PC interface or set manually on the instrument
- Statistical analysis (sum, average, max/min readings with cell number)

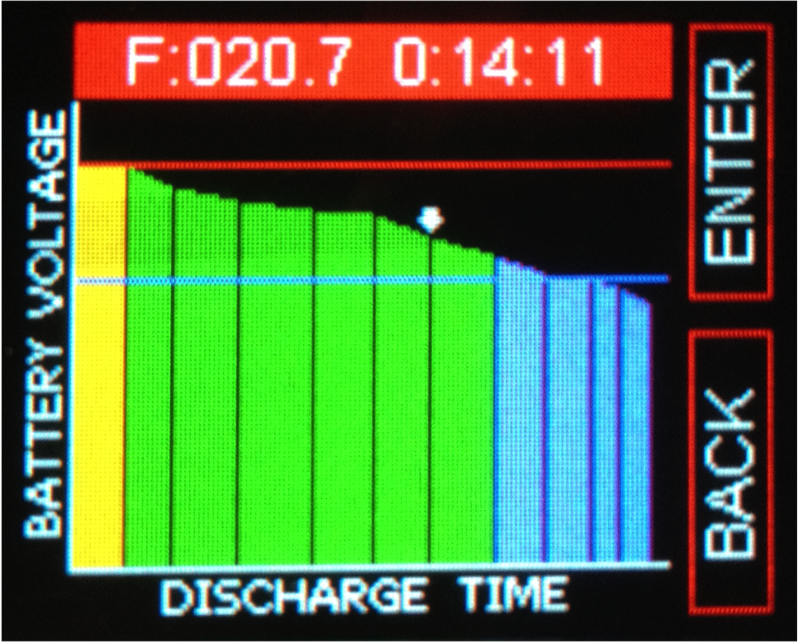

- Graphical analysis (battery voltage Vs time & selected cell voltage Vs time)

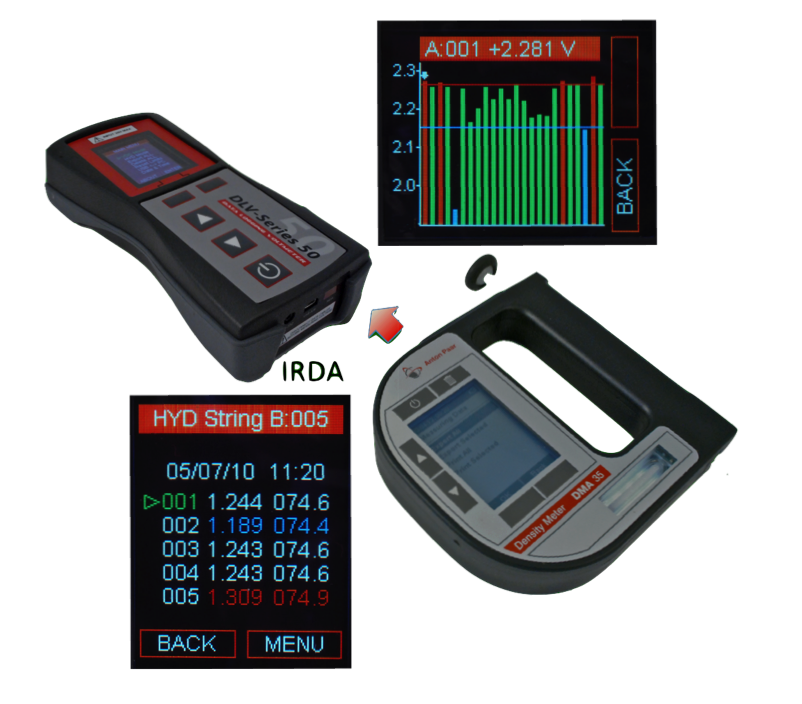

Upload and View DMA35 Hydrometer Data
- Upload DMA35 data via IRDA in 8 strings of 256 format
- No data additional data module required)
- Date and time stamping of uploaded data
- Combine hydrometer data with 8 strings of 256 cell voltage data
- IMPORTANT: Hydrometer is NOT included, consider purchasing the DMA35-DLV50-BATT battery test package
Easily Transfer Data Files to Winmeter 5.1 Battery Analysis Software
- The DLV50 offers USB Plug 'n' Play syncing & configuration of all data
- Enables threshold, date, time and string deletion via USB
- Edit, delete or insert test data prior to creating battery analysis reports
- Create detailed battery test reports and save to a custom database
- Sophisticated battery discharge analysis (incl. animated discharge reports)
- Optional one-click export data to ExcelTM or save toPDF format
Specifications
Physical

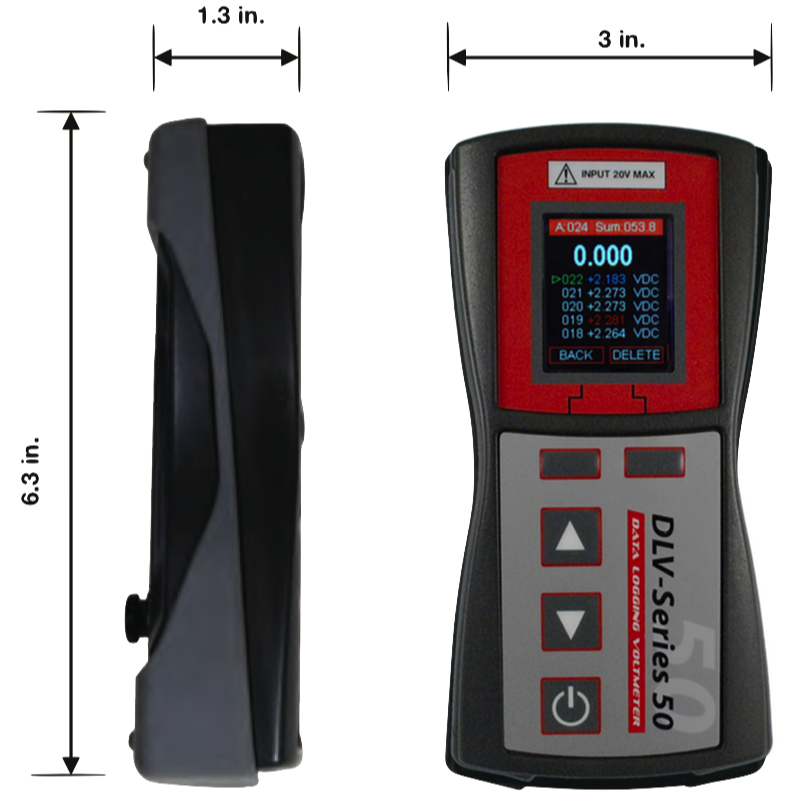

- Dimensions L 6.3" x W 3" x D 1.3"
- Weight 10.5 ounces
- Keypad 5 key membrane (tactile)
- Type OLED 256K Color
- Viewing area 35mm by 28mm
- Resolution 160 by 128 pixels
- Internal: 512K EEPROM
- DC voltage float capacity: 8 by 256 & 20 by 48
- DC voltage discharge capacity: 11 by 256
- SG & temperature string capacity: 8 by 256
- Data retention: 10+ years with battery removed
- Precision +/- 3 seconds per month
- Calendar 100 year with leap year detection
- Time retention 10 minutes with battery removed
- Infrared IRDA Obex for DMA35 hydrometer
- Infrared IRDA raw for optional printer
- USB host mode for flash drive
- USB device mode for PC/Winmeter 5.1 connection
- Type 3 by alkaline AA
- Battery life 20 hours (Approx.)
- Auto-off 3 min with no activity
Environmental
- Temperature range (Operating) 0C-40C (32F-104F)
- Temperature range (Storage) -10C-60C (20F-140F)
- Humidity range (0C-31C) 0% to 80% (non-condensing)
- Humidity range (32C-40C) 0% to 50% (non-condensing)
- Altitude 0-2000 meters above sea level
Input
0-4V
4-6V
6-16V
16-20V
0-4V
4-6V
6-16V
16-20V
VDC Accuracy
+/-5mV
+/-10mV
+/-10mV
+/-10mV
+/-5mV
+/-10mV
+/-10mV
+/-10mV
DC Resolution
1mV
1mV
1mV
1mV
1mV
1mV
1mV
1mV
Warranty
- 1 year limited warranty
Accessories
Winmeter 5.1 Battery Analysis Software (Included)
- Compatible with all ETG data logging battery test instruments
- Provides PC interface (USB plug and play and legacy RS232)
- Statistical and graphic analysis & report generation
- Searchable battery test database
Learn more...
- Compatible with all ETG data logging battery test instruments
- Provides PC interface (USB plug and play and legacy RS232)
- Statistical and graphic analysis & report generation
- Searchable battery test database
Learn more...
Voltage test Leads (Included)
- Compatible with DLV50 & DLV30
- Needle sharp points for penetrating oxidized/dirty battery terminals
- Flexible high quality leads for ease of use

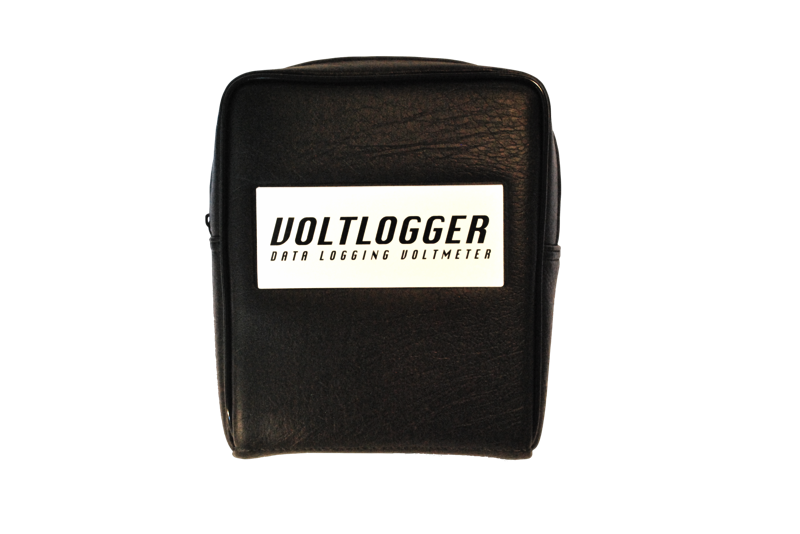

Custom Soft Case (Included)
- Compatible with DLV30 & DLV50
- Space for all accessories
- Acid resistant

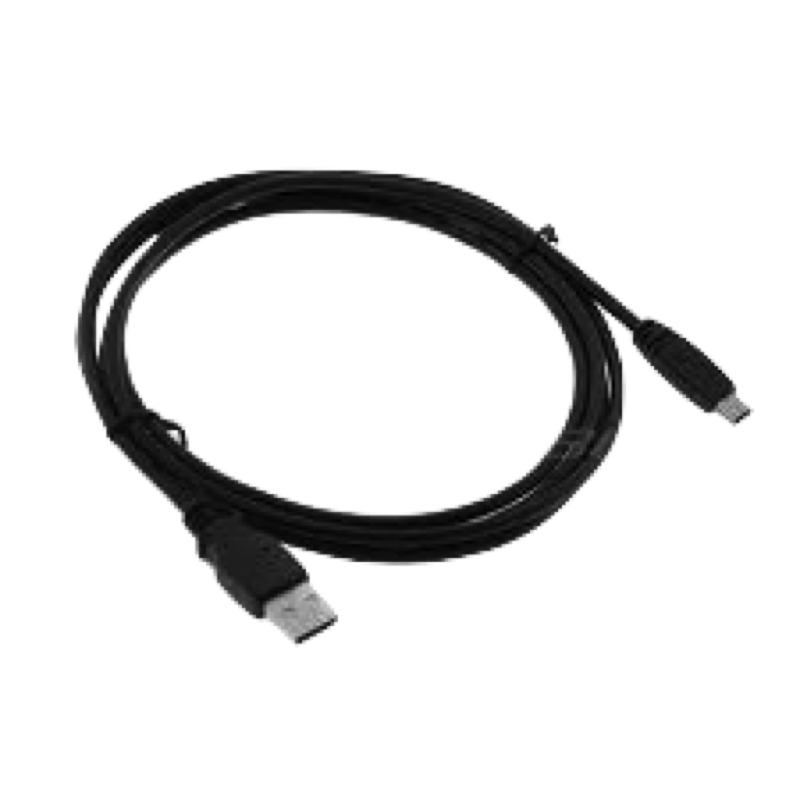

Micro USB Cable (Included)
- Compatible with DLV50
- Required for data download to PC (Via WInmeter 5.1)

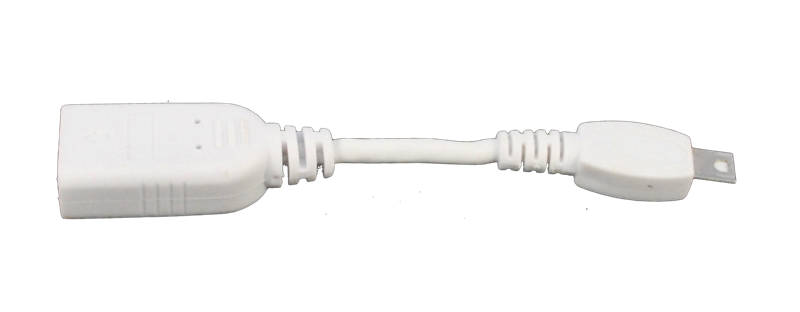

USB Flash Drive Adapter Cable (Included)
- Compatible with all standard USB flash drives
- Required for allow DLV50 to export .bdf (Winmeter format) battery data files to a USB flash drive

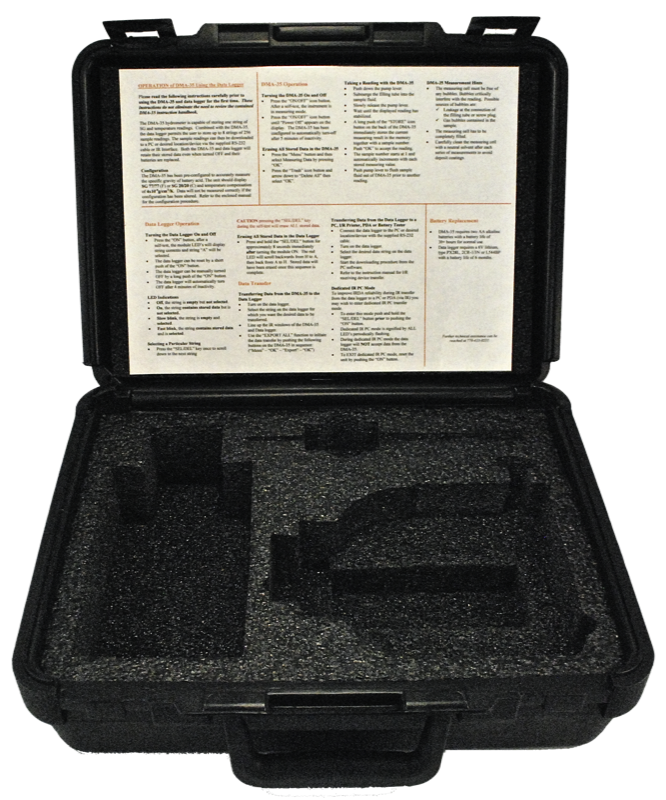

Custom Hard Case (Optional)
- Compatible with DMA35, DMA35 Module, DLV30 & DLV50
- Space for all accessories
- Acid resistant
