DMA35 Digital Hydrometer
Features:
- Collect and store up to 1028 specific gravity and temperature readings.
- Measure specific gravity and temperature in less than 5 seconds.
- Specific gravity temperature is automatic and the unit is preconfigured for 77/77 F or 20/20 Cs
- Can be used on all manufacturers “wet” cells by using the corner withdrawal tube or vent caps
- One hand operation for convenience.
- Splash-proof membrane keypad for robustness.
- To increase storage capacity to 8 strings of 256 readings and enable PC data download to the Winmeter 5.0 battery analysis software, consider upgrading to the DMA35-BATT data logging hydrometer or the DMA35-DLV50-BATT data logging hydrometer & voltmeter battery test packages.
IMPORTANT NOTE: The DMA35 Hydrometer requires a DMA35 Data Module or DLV50 Data Logging Voltmeter to interface to a PC/Winmeter 5.1 Battery analysis software.
Specifications
- Specific Gravity Measurement Range:
- Temperature Compensation Basis:
- Specific Gravity Accuracy:
- Calibrated Temperature Range:
- Max/Min Ambient Temperature:
- Weight:
- Enclosure Dimensions:
- Power Requirements:
- Memory Capacity:
- Memory Integrity:
1.999 SGU @ 77F/77F
77F (25C)
+/- 0.001 SGU
32 to 104 °F @ +/- 0.5F
50F to 100F*
10 Ounces
5.5” x 5.1” x 1.0”
Two AA Batteries (Alkaline)
1024 readings**
10 years (with battery removed)
77F (25C)
+/- 0.001 SGU
32 to 104 °F @ +/- 0.5F
50F to 100F*
10 Ounces
5.5” x 5.1” x 1.0”
Two AA Batteries (Alkaline)
1024 readings**
10 years (with battery removed)
*will work outside range with decreased accuracy.
**Only first 256 readings can be transferred to DMA35 data module or DLV50.
**Only first 256 readings can be transferred to DMA35 data module or DLV50.
Accessories

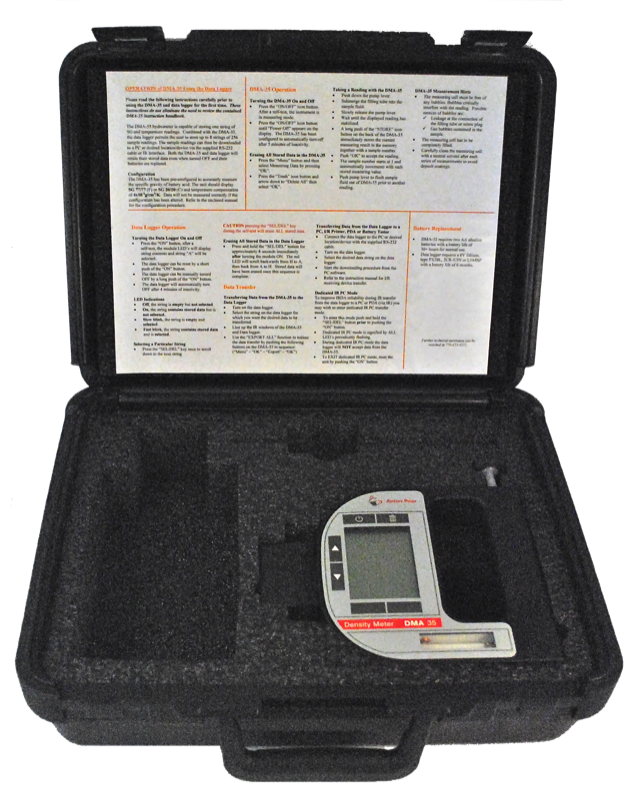

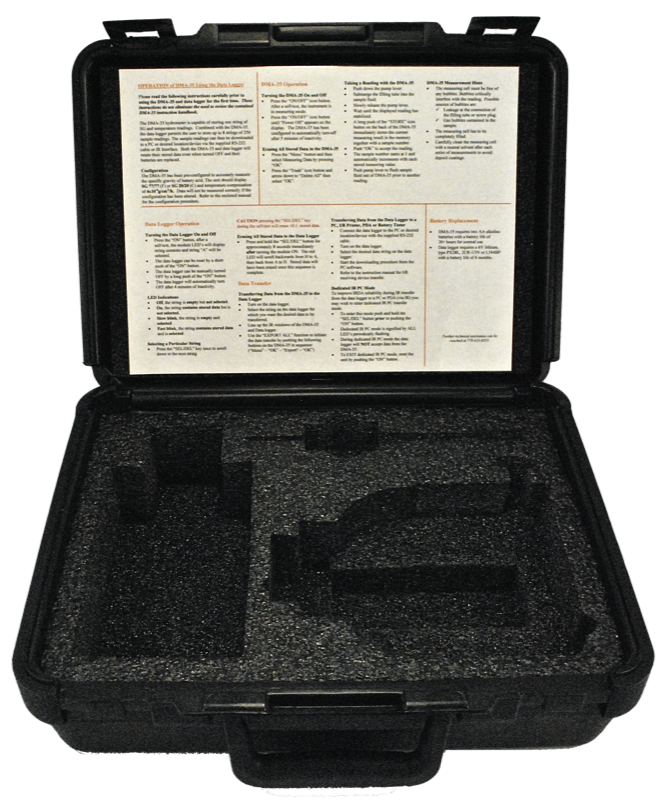

Custom Hard Case (Included)
- Compatible with DMA35, DMA35 Module & DLV50
- Space for all accessories
- Acid resistant
______________________________________________
Order additional accessories online…
- Convenient online ordering of all instrument accessories
- Payment via Paypal, credit card or purchase order
