DMA35 Data Logging Module


Stacks Image 909
The DMA35 data logging module enables the DMA35 hydrometer to store up to 8 strings of 256 specific gravity and temperature readings. This data can then be downloaded and analyzed using the Winmeter 5.1 Battery Analysis Software.

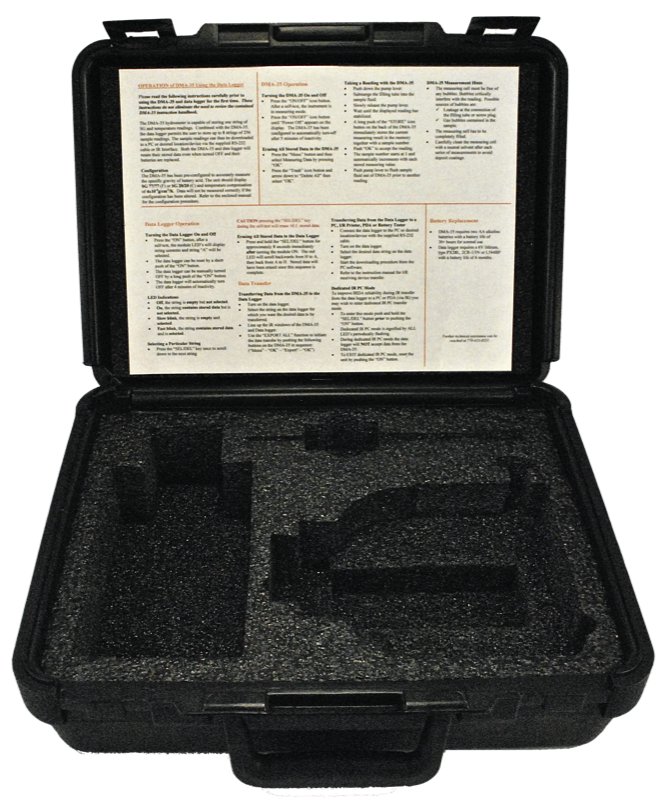

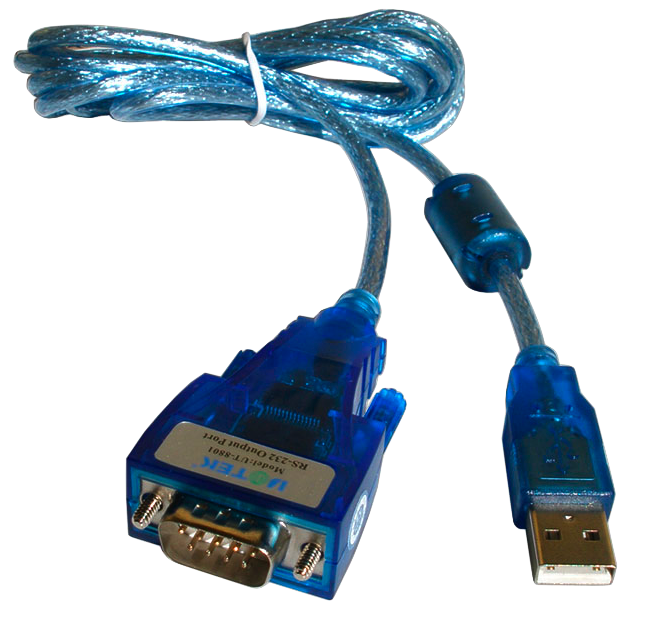

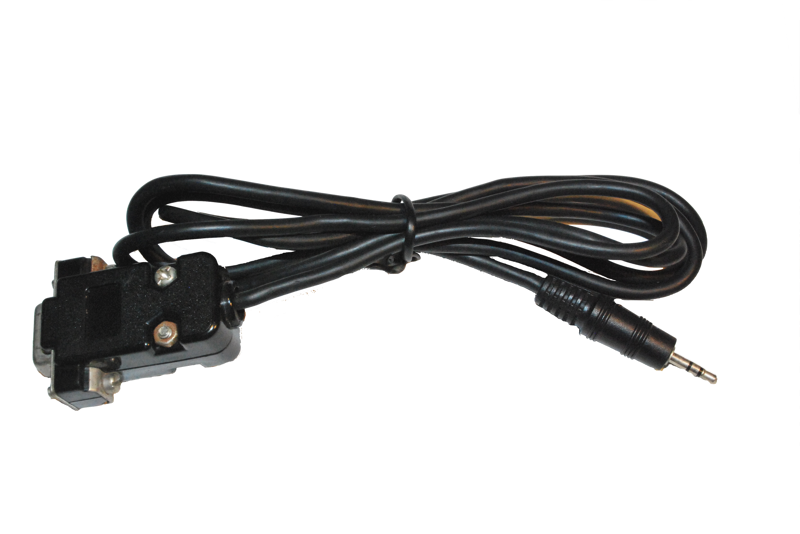

For a complete solution consider purchasing the DM35-BATT battery test kit (DMA35 hydrometer, DMA35 data module, RS232 download cable, Winmeter 5.1 Battery Analysis Software and custom hard case)

Stacks Image 723
    ×



Simple yet powerful...

DMA35 Hydrometer (not included)
Step 1: Use a DMA35 digital hydrometer (not included) to take up to 256 readings of SG and temperature

Wirelessly transfer DMA35 hydrometer readings to DMA35 data module in seconds

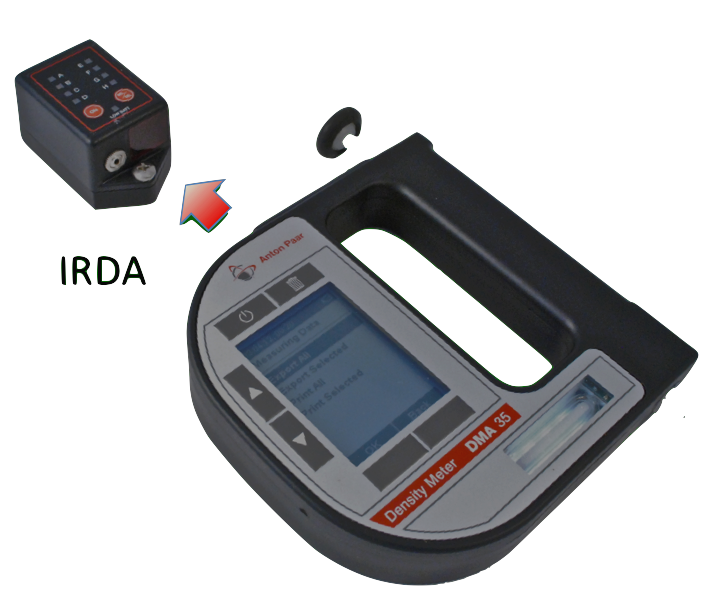

Step 2: Transfer the DMA35 readings (via IRDA) to the DMA35 data module. The module can hold up to 8 strings of 256 readings

Upload DMA35 module data to Winmeter 5.0 Software

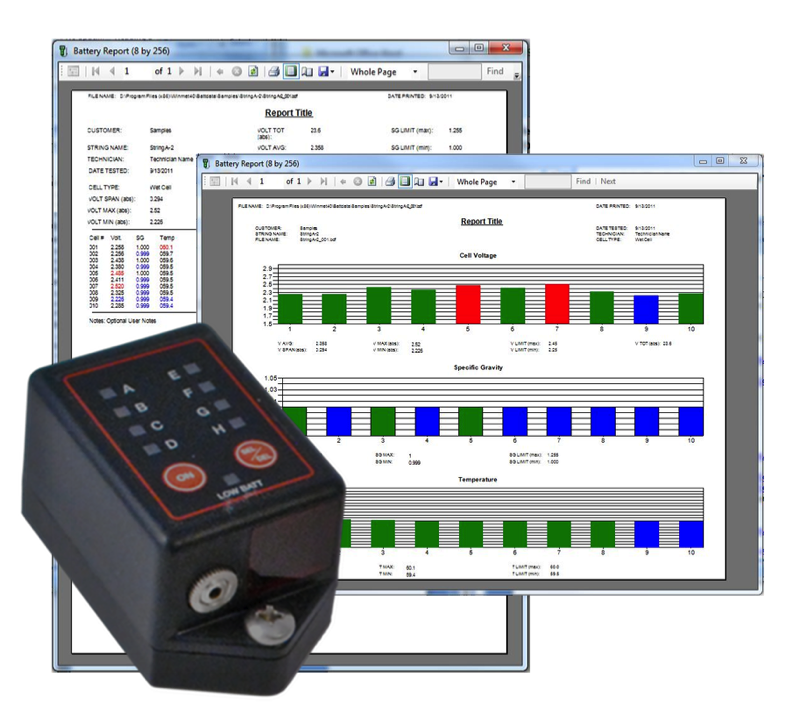

Step 3: Connect the DMA35 data module to a PC/Winmeter 5.1 battery analysis software to transfer all data and generate/save battery test reports
